Yamaha Maxim X Brackets for Nology Coils

$6.00

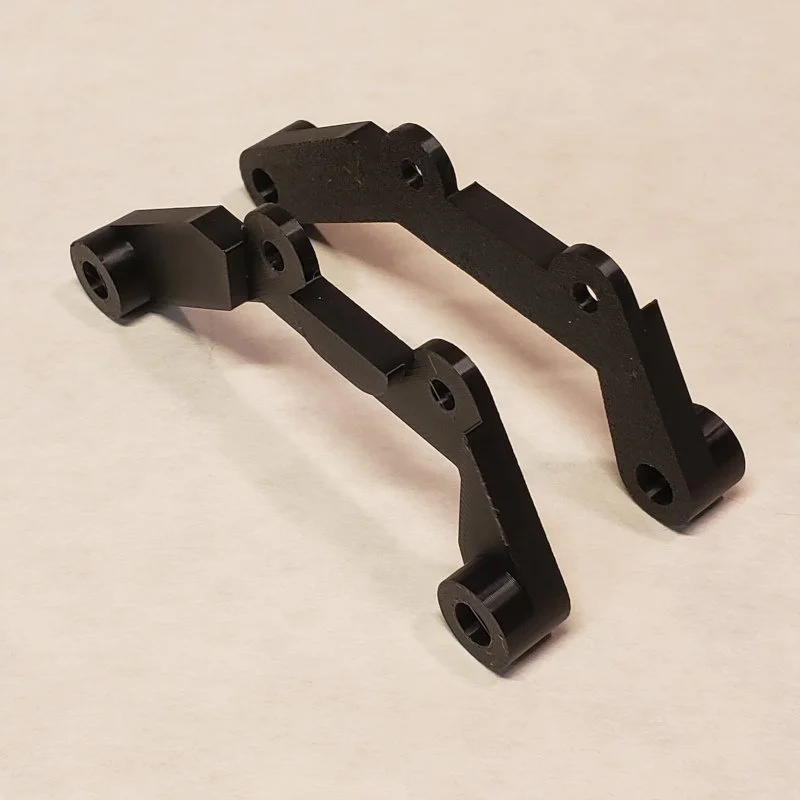

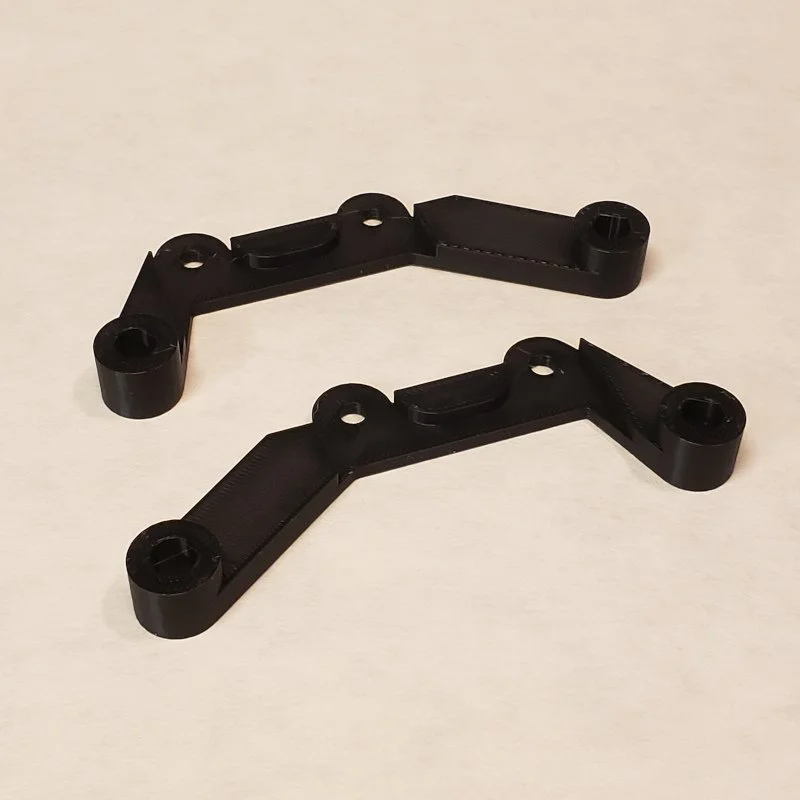

These brackets adapt high-performance Nology ignition coils to the Yamaha Maxim X (XJ700X) model years 1985 and 1986, allowing the coils to be mounted in the exact position and orientation of the original OEM Ignition Coil Assembly.

Key Features

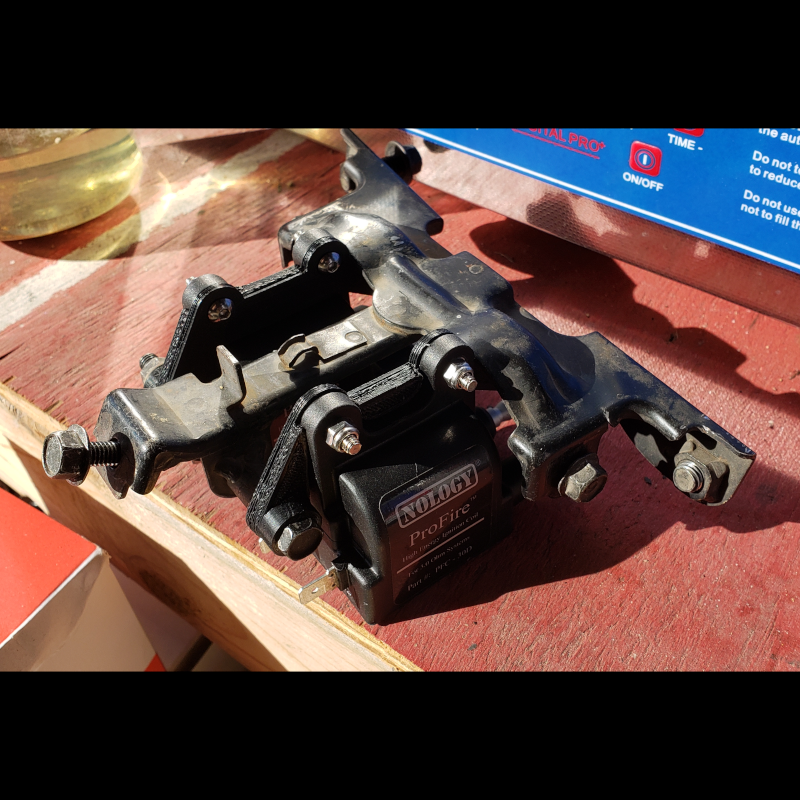

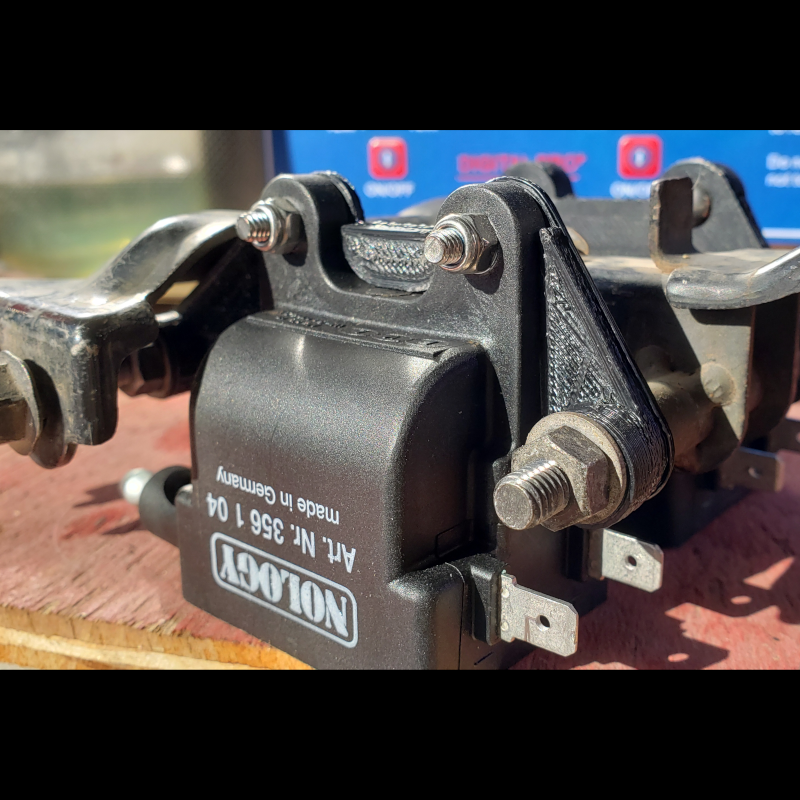

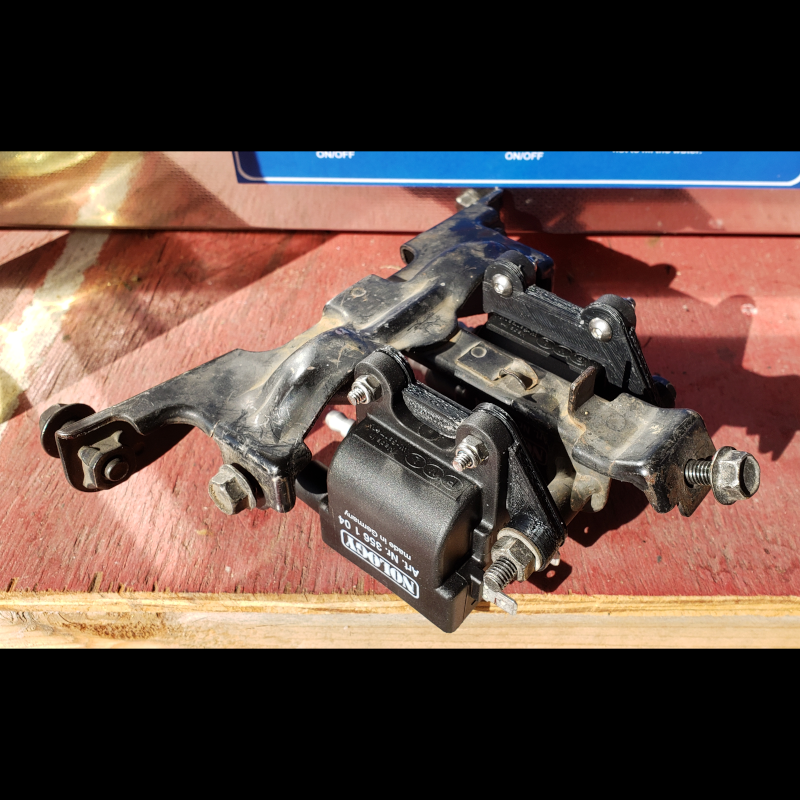

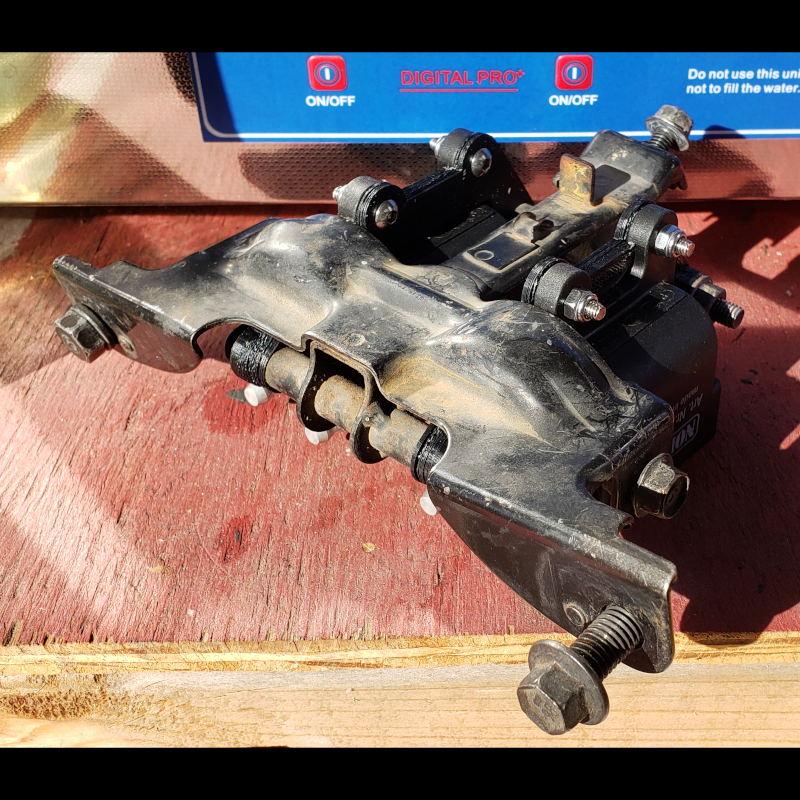

  • Direct-fit adapter: Positions Nology coils to match the OEM coil assembly location and orientation, preserving clearance and routing.

  • OEM-compatible mounting: Uses the original Horn Stay mounting points for secure installation without modification to the frame or stay.

  • Durable design: Engineered to withstand engine bay vibration typical of the Maxim X.

  • Maintains stock appearance and fitment while enabling upgraded ignition performance.

Compatibility

  • Motorcycle: Yamaha Maxim X (XJ700X)

  • Model years: 1985, 1986

  • OEM Coil Assembly reference: 1AA-82310-09-00

  • OEM Horn Stay reference: 1AA-2134Y-00-00

Application Notes

  • Designed as a bolt-on adapter; no frame drilling or cutting required when used with the corresponding OEM mounting points.

  • Ensure proper electrical connections and correct coil type/spec for your Nology coils prior to installation.

  • Verify clearance with ancillary components (wiring looms, fuel lines) during fitment; minor routing adjustments may be necessary.

This design allows riders and mechanics to upgrade to high-performance Nology ignition coils while retaining original mounting geometry, maintaining a factory-like installation and minimizing modification to the motorcycle.

These brackets adapt high-performance Nology ignition coils to the Yamaha Maxim X (XJ700X) model years 1985 and 1986, allowing the coils to be mounted in the exact position and orientation of the original OEM Ignition Coil Assembly.

Key Features

  • Direct-fit adapter: Positions Nology coils to match the OEM coil assembly location and orientation, preserving clearance and routing.

  • OEM-compatible mounting: Uses the original Horn Stay mounting points for secure installation without modification to the frame or stay.

  • Durable design: Engineered to withstand engine bay vibration typical of the Maxim X.

  • Maintains stock appearance and fitment while enabling upgraded ignition performance.

Compatibility

  • Motorcycle: Yamaha Maxim X (XJ700X)

  • Model years: 1985, 1986

  • OEM Coil Assembly reference: 1AA-82310-09-00

  • OEM Horn Stay reference: 1AA-2134Y-00-00

Application Notes

  • Designed as a bolt-on adapter; no frame drilling or cutting required when used with the corresponding OEM mounting points.

  • Ensure proper electrical connections and correct coil type/spec for your Nology coils prior to installation.

  • Verify clearance with ancillary components (wiring looms, fuel lines) during fitment; minor routing adjustments may be necessary.

This design allows riders and mechanics to upgrade to high-performance Nology ignition coils while retaining original mounting geometry, maintaining a factory-like installation and minimizing modification to the motorcycle.
